  • FireNEX-COAX-S800
  • Coax cable with repeaters.

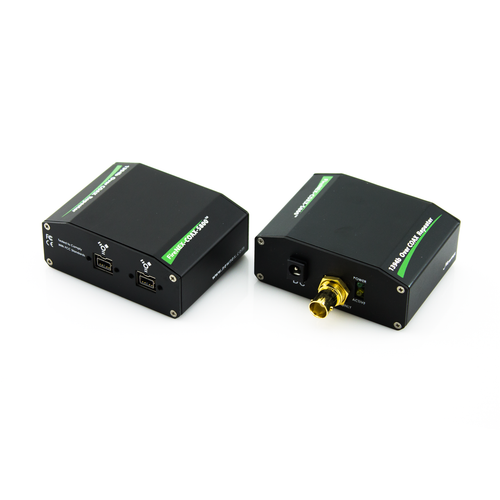

FireNEX-COAX-S800 1394b Coax Repeater Set


About This Product

SKU/PN: FIRENEX-COAX

The FireNEX-COAX-S800™ uses flexible coax cabling, etc. There are several advantages in using a standard 75 Ω COAX cable that. It has excellent EMC performance, low cost connections, enables terminations by the end user, and the possibility of using existing cabling infrastructure. Since FireNEX-COAX-S800™ repeater has two 1394b ports it can also be used as a hub for daisy chain connections.

A FireNEX-COAX-S800™ SET includes two FireNEX-COAX-S800™ repeaters, and a manual. A DC power jack lets you connect an optional power supply, such as the FIRENEX™-POWER. Whenever you purchase 2 FireNEX™ repeaters we consider it a set. COAX cable and FireWire/IEEE1394b cables are not included. FireNEX-COAX-S800™ comes with one-year manufacturer warranty.



  • Two IEEE1394 9 pin ports
  • One standard BNC COAX port
  • Works with PCs, Macs and Linux
  • Light Weight: 140g
  • Compact size: 78x30x70 mm
  • Bus powered or self powered
  • Data rate: 100/200/400/800 Mbps
  • Reaches up to 60 meters
  • Low Power Consumption: 3W (DC12V/0.25A)
  • Industrial standard screw locking for 1394b ports

FireNEX800™, FireNEX-MX™, FireNEX800™-SX, FireNEX-CAT5™, FireNEX-CAT5™ S400, FireNEX-COAX-S800™, FireNEX-POF™,FireNEX-CAT5-S800™ are registered trademarks of Newnex Technology Corp. All rights reserved


    If you would like to order in large quantity of this product, please contact us directly. We will be happy to provide a quote and assist you with the order.
