Features:

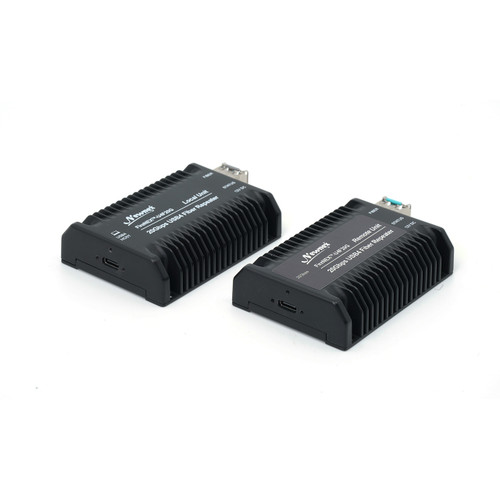

FireNEX™-U4F20G-C is a high-performance USB4 fiber optic repeater for long-distance USB-C connectivity. It connects to USB4 or Thunderbolt 3/4/5 USB-C hosts and transmits signals over EMI-free fiber to a Remote Unit with a single USB 3.2 Gen 2x2 Type-C port supporting up to 20Gbps — delivering the full bandwidth over one USB-C connection.
It extends USB-C connections up to 700m at 5Gbps and 300m at 20Gbps, far beyond the limits of passive USB-C cables. The Remote Unit’s downstream USB-C port also supports up to 30W USB Power Delivery, allowing a single cable to carry both high-speed data and device power. The Local Unit supports hot-plug operation to help prevent system reboots if the fiber link disconnects.
Compatible with Windows, macOS, and Linux using native drivers, it supports USB 3.0 and 2.0/1.1 devices. FireNEX™-U4F20G-C is ideal for industrial automation, machine vision, medical imaging, scientific research, and Pro AV applications.
In the Box:
1 × FireNEX-U4F20G-C Local Unit
1 × FireNEX-U4F20G-C Remote Unit
1 × USB4 Type-C Cable, 1m
2 × 12V DC Power Supply
1 × FireNEX-U4F20G-C User Guide
Resources
FAQ
Q: What is the maximum extension range that the FireNEX™-U4F20G-C supports?
A: FireNEX™-U4F20G-C is tested to extend USB 20Gbps devices up to 300 meters and USB 5Gbps devices up to 700 meters. USB3 isochronous transfer devices such as Azure Kinect are tested up to 300 meters.
Q: Does FireNEX™-U4F20G-C support USB Power Delivery?
A: Yes, the Remote Unit’s downstream USB-C port supports up to 30W USB Power Delivery (5V/3A, 9V/3A, 15V/2A, 20V/1.5A), allowing a single USB-C cable to deliver both data and power to the connected device.
Q: Does FireNEX™-U4F20G-C support DP-Alt mode?
A: No, FireNEX™-U4F20G-C currently only supports USB data transfer and does not support DP-Alt mode.
Q: Does FireNEX™-U4F20G-C work on Linux?
A: Yes, FireNEX™-U4F20G-C is fully compatible with major Linux operating systems including Ubuntu 18.04 and up.
Q: Does FireNEX™-U4F20G-C support fiber hot plug and play?
A: Yes, FireNEX™-U4F20G-C supports hot plug and play.
Q: Is FireNEX™-U4F20G-C backward compatible with USB 2.0?
A: Yes, FireNEX™-U4F20G-C is fully backward compatible with USB 2.0/1.1 devices such as MCU, microphone, keyboard, and mouse.
Q: What fiber optic cable is required between the Local and Remote units?
A: OS2 Single Mode Fiber Optic Cable, with Duplex LC-LC Connector, A/B straight-through wiring per the TIA-568-C standard.

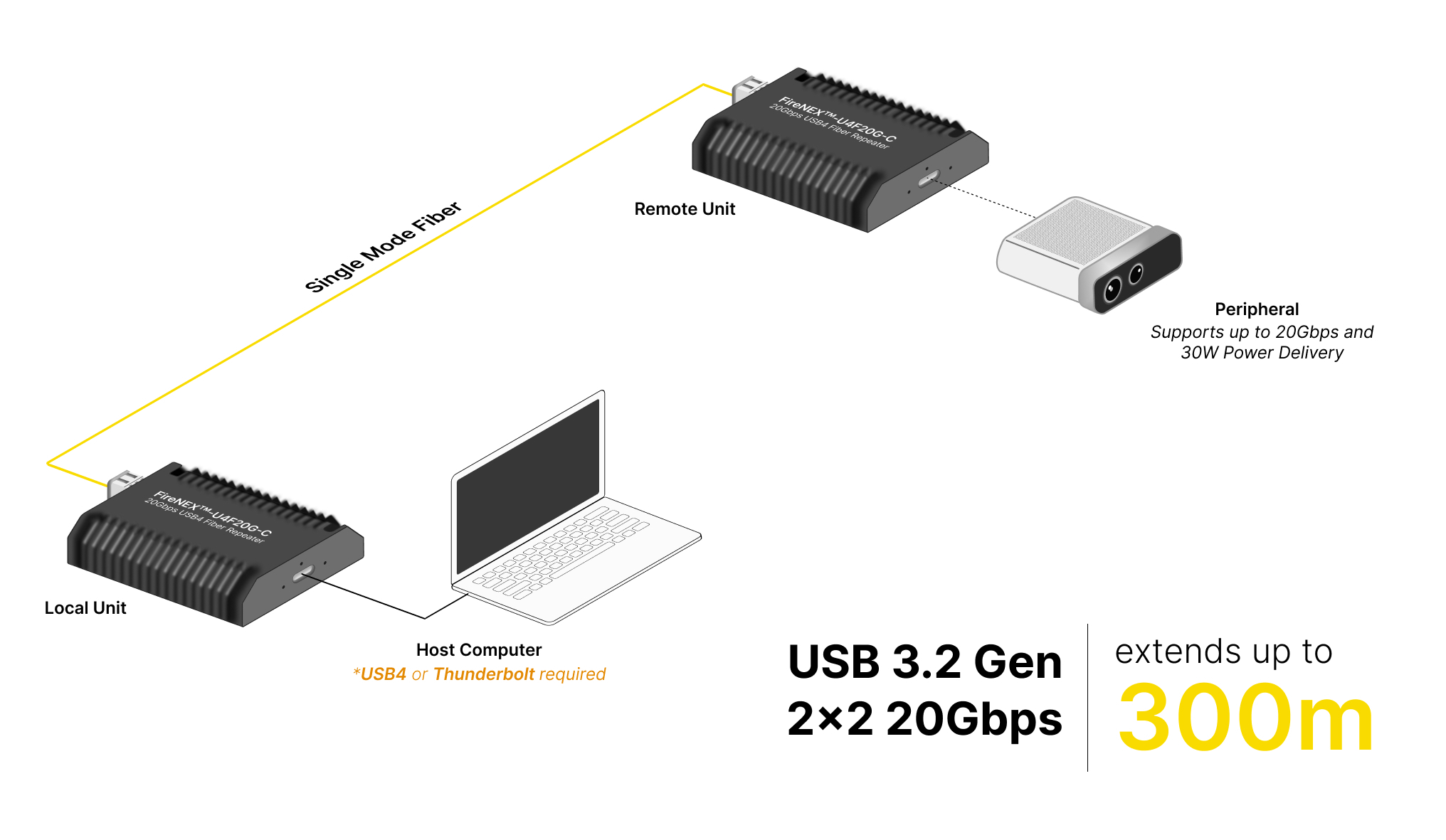

Application Diagram
